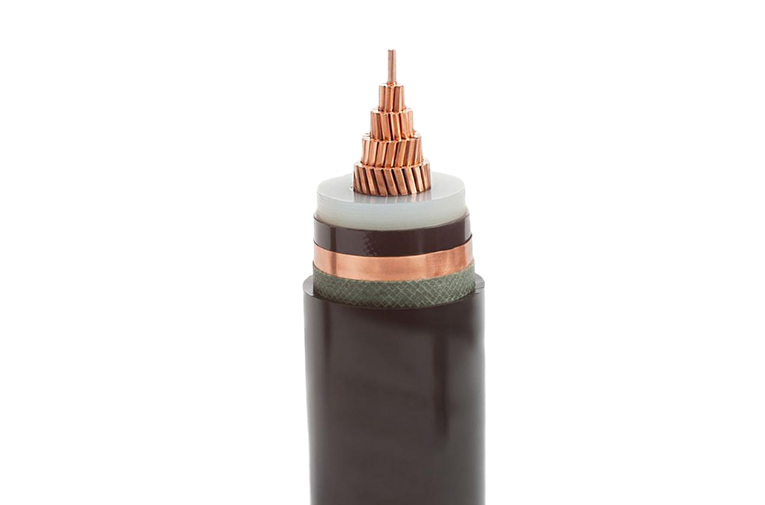

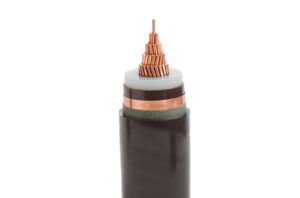

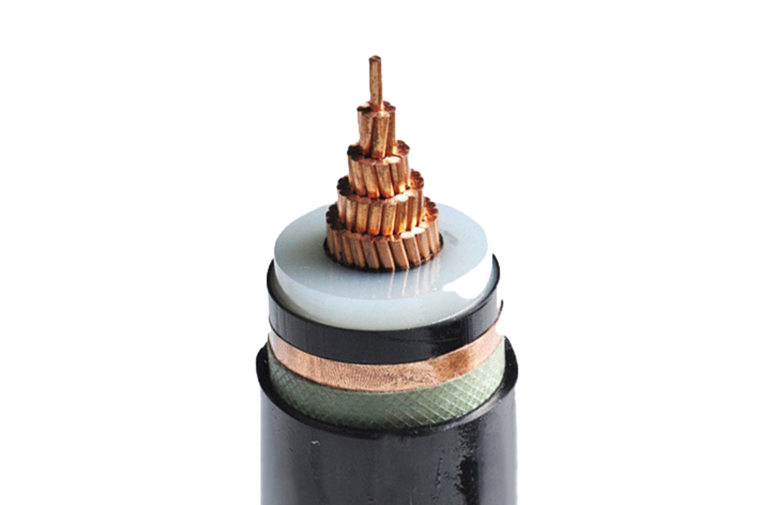

6/10(12)kV XLPE Insulation Unarmored Power Cable

6/10(12)kV XLPE Insulation Unarmored Power Cable

To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations...

Certificate :

ISO 9001 ISO 14001 ISO 45001 CE

Manufacturing Capacity :

5000km/Month

Packaging Details :

Wood Drum, Steel-Wood Drum or Metal Drum

Send Email

Chat Now

SHARE PRODUCT

Product Description

To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations.

Get a Custom Quote

Product Application

Product Application

Product Application

Product Application

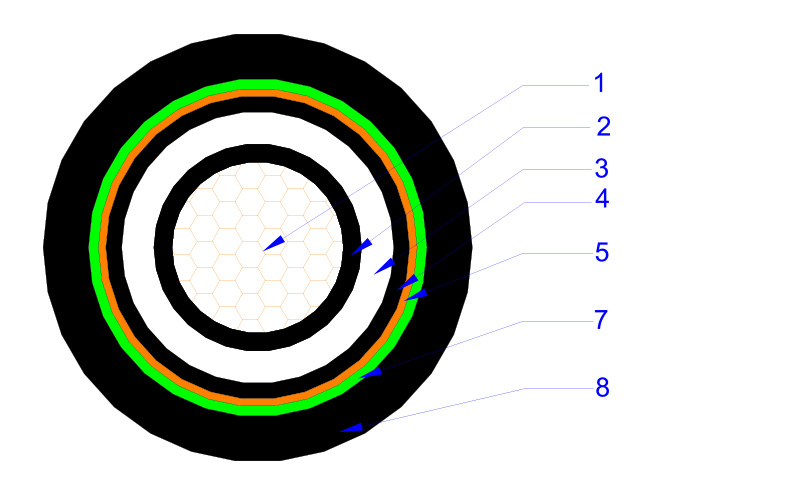

Product Structure

Conductor

- Plain class 2 compacted copper or Aluminum

Conductor Screen

- Semi-conductive compound

Insulation

- Cross linked polyethylene (XLPE)

Insulation Screen

- Semi-conductive compound

Metallic Screen

- Plain annealed copper tape

Filler

- Non-hygroscopic material(For Three core)

Binder Tape

- Non-hygroscopic material tape

Outer Sheath

- Polyvinyl chloride compound (PVC)

Standard

Cable design: IEC 60502-2 or custom cable
Conductor: IEC 60228

Voltage Test

AC Voltage Withstand: 3.5U0/5min,No breakdown
Partial discharge test:1.73U0,≯10pc

Temperature Characteristics

Conductor operating temperature: -15℃~90℃
Min. temperature laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃

Specification

Table 1 Single core CU(AL)/XLPE/CTS/PVC

No. & CSA	Conductor	XLPE insulation	Copper tape screen	Outer sheath		Weight kg/km
No. & CSA	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Nominal thickness mm	Diameter mm	YJV(CU)	YJLV(AL)
1*25	6	3.4	0.12	1.6	19.44	586.1	433.6
1*35	7	3.4	0.12	1.6	20.44	699.3	486.8
1*50	8.2	3.4	0.12	1.7	21.84	849.7	562.3
1*70	10	3.4	0.12	1.7	23.64	1092.4	670.6
1*95	11.6	3.4	0.12	1.8	25.44	1375.3	795.4
1*120	13	3.4	0.12	1.8	26.84	1632	900.9
1*150	14.6	3.4	0.12	1.9	28.64	1950.3	1038
1*185	16.2	3.4	0.12	1.9	30.24	2319.3	1182
1*240	18.4	3.4	0.12	2	32.64	2881.7	1407
1*300	20.6	3.4	0.12	2.1	35.04	3491.1	1647.7
1*400	23.8	3.4	0.12	2.2	38.44	4420	2007.9
1*500	26.6	3.4	0.12	2.3	41.68	5474.4	2412.4
1*630	30	3.4	0.12	2.4	45.28	6829.7	2911.6
1*800	34	3.4	0.12	2.5	49.48	8512.3	3525.7

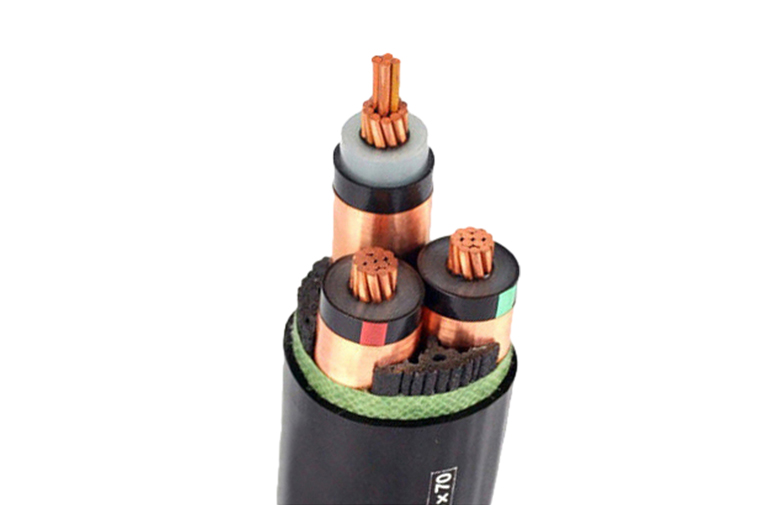

Table 2 Three core CU(AL)/XLPE/CTS/PVC

No. & CSA	Conductor	XLPE insulation	Copper tape screen	Outer sheath		Weight kg/km
No. & CSA	Approx. diameter mm	Nominal thickness mm	Nominal thickness mm	Nominal thickness mm	Diameter mm	YJV(CU)	YJLV(AL)
3*25	6	3.4	0.1	2.2	38.9	1886	1426
3*35	7	3.4	0.1	2.3	41.3	2269	1629
3*50	8.2	3.4	0.1	2.4	44.1	2741	1874
3*70	10	3.4	0.1	2.5	48.2	3541	2269
3*95	11.6	3.4	0.1	2.7	52	4449	2700
3*120	13	3.4	0.1	2.8	55.2	5290	3086
3*150	14.6	3.4	0.1	2.9	58.9	6295	3544
3*185	16.2	3.4	0.1	3	62.6	7497	4068
3*240	18.4	3.4	0.1	3.1	67.5	9263	4817
3*300	20.6	3.4	0.1	3.3	72.7	11217	5659
3*400	23.8	3.4	0.1	3.5	80	14188	6916
3*500	26.6	3.4	0.1	3.7	86.9	17543	8311
3*630	30	3.4	0.1	4	94.9	21897	10084
3*800	34	3.4	0.1	4.2	103.9	27252	12217
